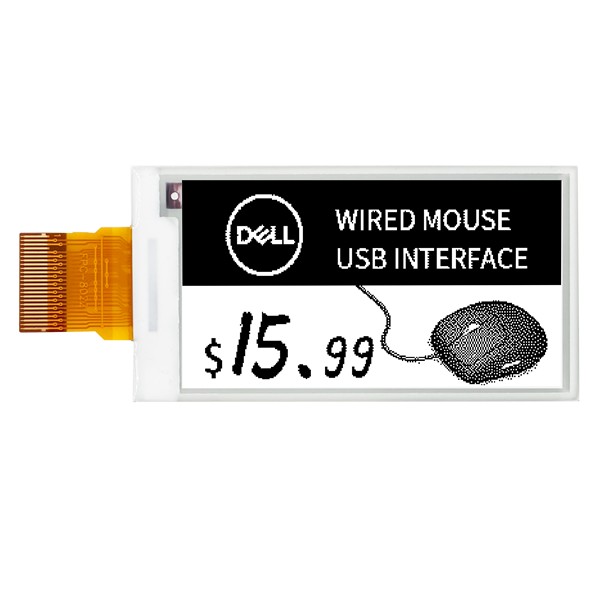

Black & White
ePaper Display's Basic function
Refresh Method: Full refresh for 2s、Partial refresh for 0.3s、4 grayscale refresh for 2s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 0.97 inch
Resolution:184x88
PPI: 210.27
Color: Black and White
Driver IC:SSD1680
Interface: SPI (18Pin)
Operating voltage: 3.3V
Operating temperature: 0-50 ℃
Optional customized: NFC Driver Board
ePaper Display's Main features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation

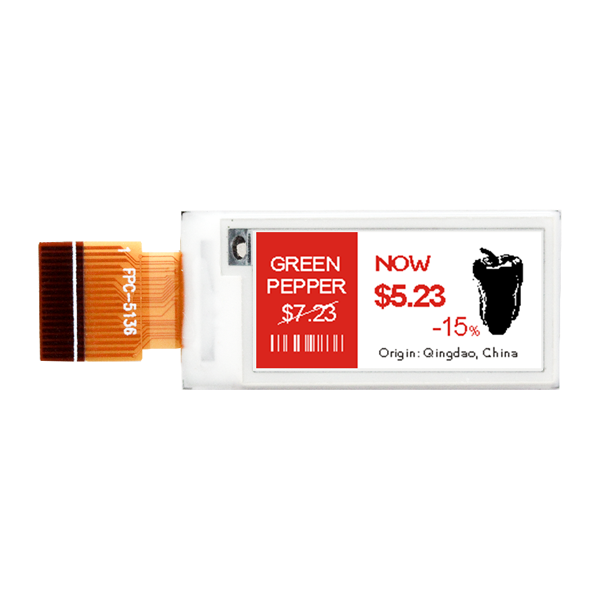

Multi Color
E Ink Display's Basic Function
Refresh method: Full update 16s、Fast Update 12s (tested at 25°C ambient temperature)
Display orientation: Horizontal or vertical
E Ink Display's Basic Parameters
Product size: 0.97 inch
Driver IC: JD79661
Resolution: 184x88
PPI: 210.27
Color: Black, White, Yellow and Red (Four-color)
Interface: SPI (18 pin)
Operating voltage: 3.3V
Operating temperature: 0-40 ℃
Optional customized: NFC Driver Board
E Ink Display's Main Features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
