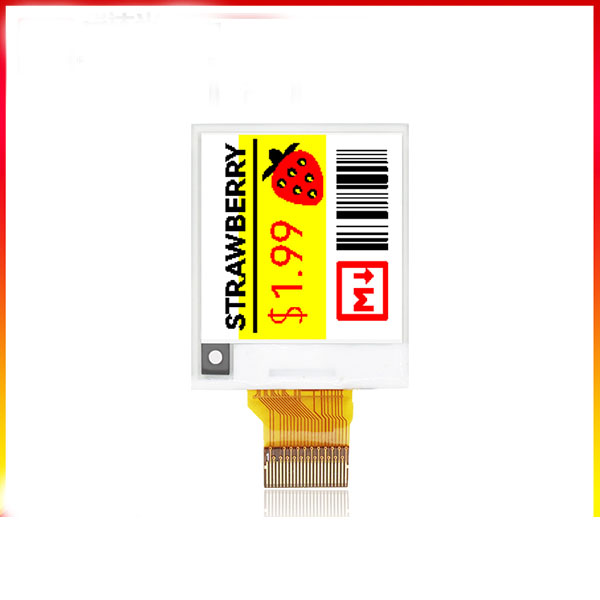

High Resolution 1.54" 4-Color E-Ink Display
ePaper Display's Basic function
Refresh Method: Full refresh for 20s，Fast refresh for 12s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 1.54 inch
Resolution: 200x200
PPI: 183.66
Color: Black, White, Yellow and Red
Driver IC: JD79660
Interface: SPI
Operating temperature: 0-40 ℃
Optional customized: NFC driver board | NFC Tag
ePaper Display's Main features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation

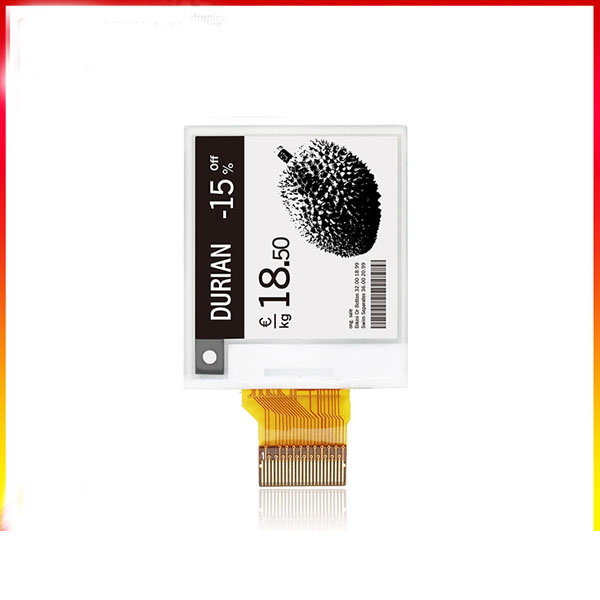

1.54" E Ink Display for Raspberry Pi –Fast Refresh E-Paper Screen
ePaper Display's Basic function
Refresh Method: Full refresh for 2s、Fast refresh for 1.5s、Partial refresh for 0.3s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 1.54 inch
Resolution: 200x200
PPI: 183.66
Color: Black and White
Driver IC: SSD1681
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-50 ℃
Optional customized: Touch screen | Front light | Front Light + Touchscreen | NFC driver board
ePaper Display's Main features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
