High-Resolution 2.66" 4-Color E Ink Display Module, 360×184
Display direction:Horizontal or vertical
Display Size:2.66 inch
Resolution:360×184 pixels
Display Colors:Red, Yellow, Black and White (RYBW)
Refresh Time:12s (Fast Refresh) | 16s (Full Refresh) tested at 25°C ambient temperature
Driver IC:JD79667
Interface:SPI (24 Pin 0.5mm connector)
Power Consumption:18.48mW (Refresh) | 0.003mW (Standby)
PPI:152

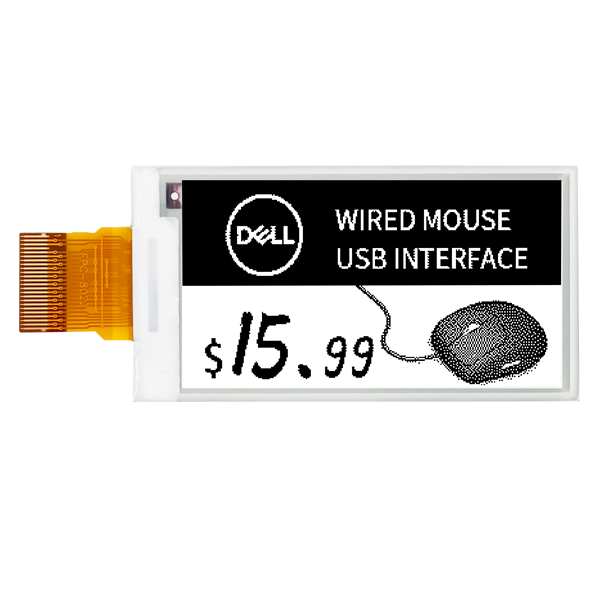

2.66 Inch E Ink Display 1.5s Fast Update SSD1680 Monochrome
ePaper Display's Basic function
Refresh Method: Full refresh for 3s、Fast refresh for 1.5s、Partial refresh for 0.4s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 2.66 inch
Resolution: 296x152
PPI: 125.09
Color: Black and White
Driver IC: SSD1680
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-50 ℃
Optional customized: NFC driver board
ePaper Display's Main features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
