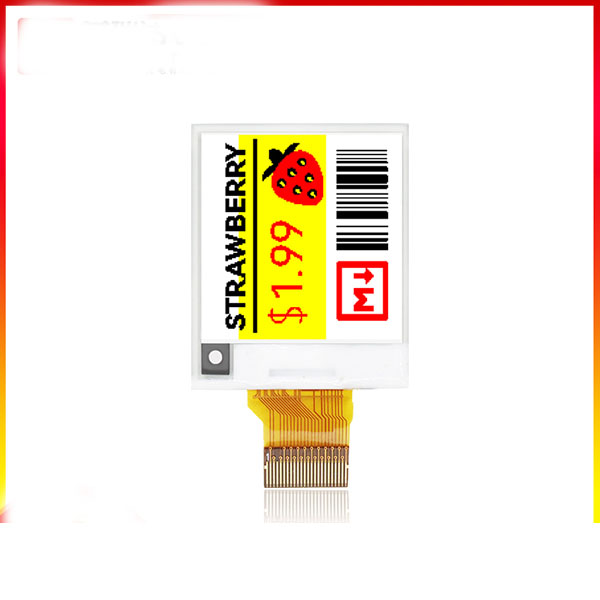

2.13" Four Color E-Paper Display, 250×122, Fast 11s Refresh
ePaper Display's Basic function
Refresh Method: Full refresh for 16s, Fast refresh for 11s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 2.13 inch
Resolution: 250x122
PPI: 130.6
Color: Black, White, Yellow and Red
Driver IC: JD79676A
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-40 ℃
Optional accessories: Front Light|Plastic Enclosure|NFC driver board|NFC Tag
ePaper Display's Main features
Display feature: Bistable display (maintains the last screen after power outage)
Display mode: Pure reflection
Angle of view: Wide angle of view, greater than 170 degrees
Surface treatment: Hard coating anti glare treatment
Environmentally friendly and low-carbon: No refresh, no power consumption
Eye protection: No blue light, no radiation

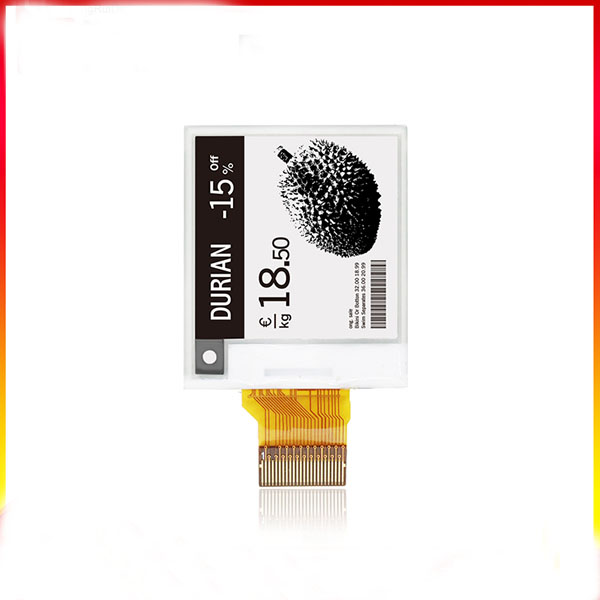

2.13 inch E-paper Display, 1.5s Fast Update 250x122
ePaper Display's Basic function
Refresh Method: Full refresh for 3s、Fast refresh for 1.5s、Partial refresh for 0.3s (tested at 25°C ambient temperature).
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 2.13 inch
Resolution: 250x122
PPI: 130.6
Color: Black and White, 4 grayscale
Driver IC: SSD1680Z
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-50 ℃
Optional customized: Touch screen | Front light | Front light + Touch screen | Plastic Enclosure | NFC Driver Board | NFC Tag
ePaper Display's Main features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
