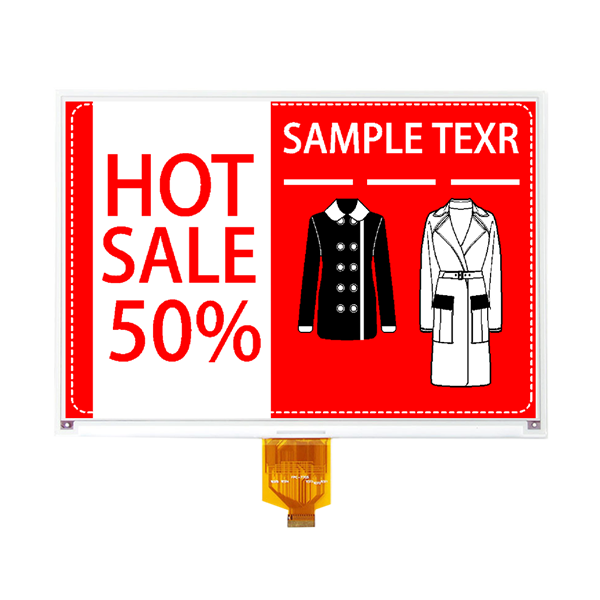

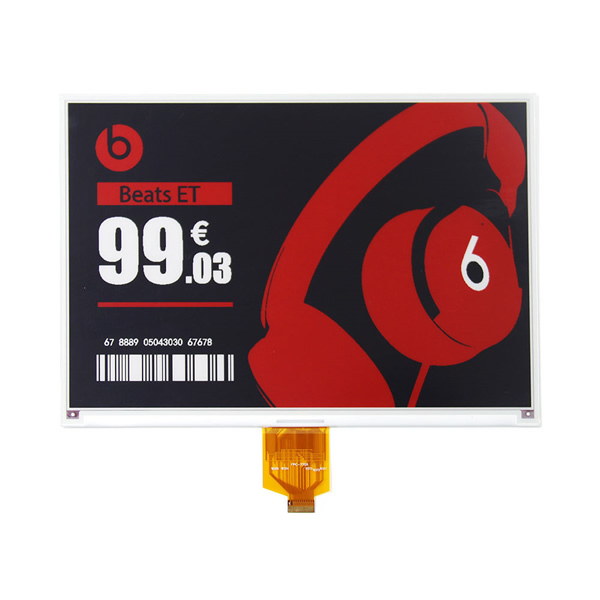

10.2-Inch Large Four-Color E Ink Display, 960x640 Resolution
E Ink Display's Basic Function
Refresh method: Full refresh for 20s (tested at 25°C ambient temperature)
Display orientation: Horizontal or vertical
E Ink Display's Basic Parameters
Product size: 10.2 inch
Resolution: 960x640
PPI: 113.12
Color: Black, White, Red and Yellow
Driver IC: SSD2677
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-40 ℃
E Ink Display's Main Features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation

E-ink 10.2 Inch E-Paper Display Resolution 960x640 SPI
E Ink Display's Basic Function
Refresh method: Full update for 4s、Partial update for 0.42s (tested at 25°C ambient temperature)
Display orientation: Horizontal or vertical
E Ink Display's Basic Parameters
Product size: 10.2 inch
Resolution: 960x640
PPI: 113.12
Color: Black and White
Driver IC: SSD1677
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-50 ℃
E Ink Display's Main Features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
