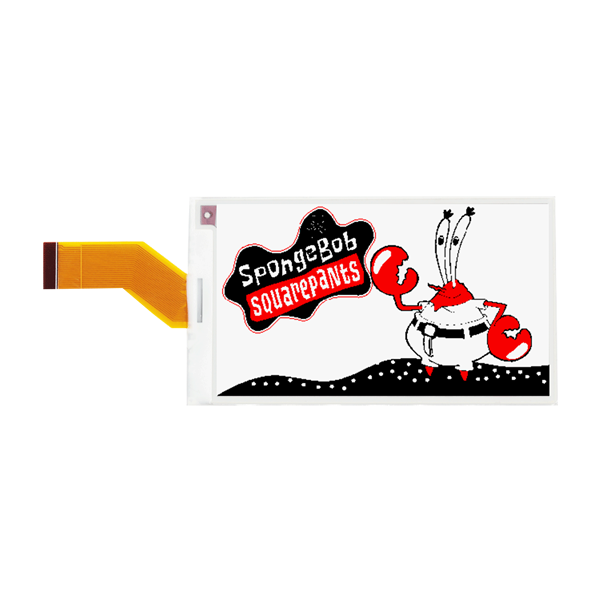

3.7-inch Black, White, Yellow, and Red E Ink Display 416x240
E Ink Display's Basic Function
Refresh method: Full update for 20s (tested at 25°C ambient temperature)
Display orientation: Horizontal or vertical
E Ink Display's Basic Parameters
Product size: 3.7 inch
Resolution: 416x240
PPI: 129.8
Color: Black, White, Yellow and Red
Drive IC: IST7163
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-40 ℃
Optional customized: NFC driver board
E Ink Display's Main Features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
E-Paper Display Arduino 3.7 inch E-ink Screen 416x240 Pixels, Fast Update
ePaper Display's Basic function
Refresh Method: Full refresh for 2s、 Fast refresh for 1.5s、Partial refresh for 0.3s (tested at 25°C ambient temperature).
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 3.7 inch
Resolution: 416x240
PPI: 129.8
Color: Black and White
Driver IC: UC8253
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-50 ℃
Optional customized:Touch screen | Front light | Front light+Touch screen | NFC driver board
ePaper Display's Main features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
