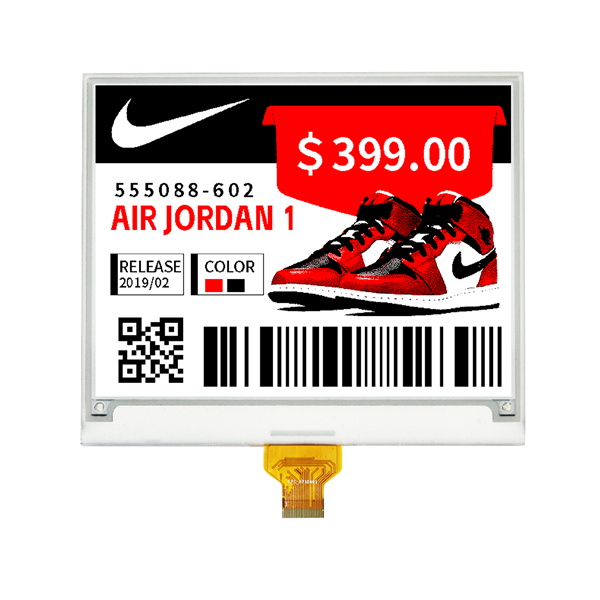

5.83" 4-Color E-Paper Display, Fast Refresh, 648×480
Display direction:Horizontal or vertical
Display Size:5.83 inch
Resolution:648x480 pixels
Display Colors:Red, Yellow, Black and White (RYBW)
Refresh Time:12s (Fast Refresh) | 20s (Full Refresh) tested at 25°C ambient temperature
Driver IC:JD79665CA
Interface:SPI (24 Pin 0.5mm connector)
Power Consumption:75.57mW (Refresh) | 0.003mW (Standby)
PPI:138

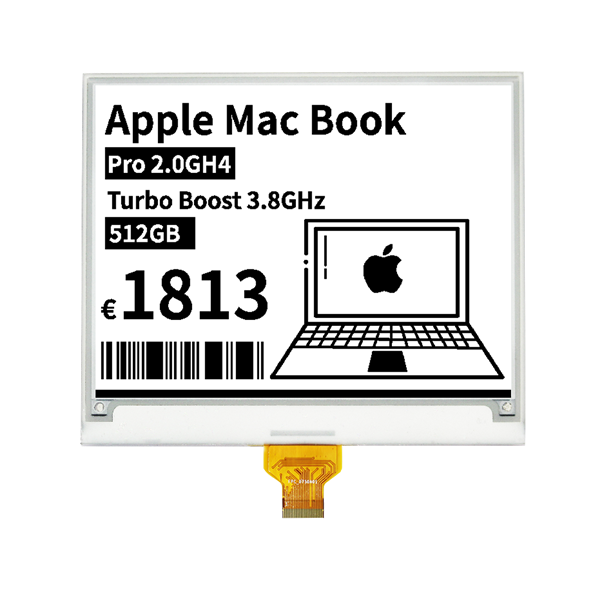

5.83" E Ink Display Module – Fast Update, E-Paper Screen
ePaper Display's Basic function
Refresh Method: Full refresh for 3s,Fast refresh for 1.5s,Partial refresh for 0.3s,4 grayscale refresh for 2s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 5.83 inch
Resolution: 648x480
PPI: 138.32
Color: Black and White
Driver IC: UC8179
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-50 ℃
ePaper Display's Main features
Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation
