2.9 Inch 4-Color E Ink Display, Fast Refresh11s
ePaper Display's Basic parameters
Refresh Method: Full refresh for 16s,Fast refresh for 11s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical
Product size: 2.9 inch
Resolution: 296x128
DPI: 112
Color: Black, White, Yellow and Red
Driver IC: JD79661
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-40 ℃
Optional customized: Plastic Enclosure | NFC driver board | NFC Tag

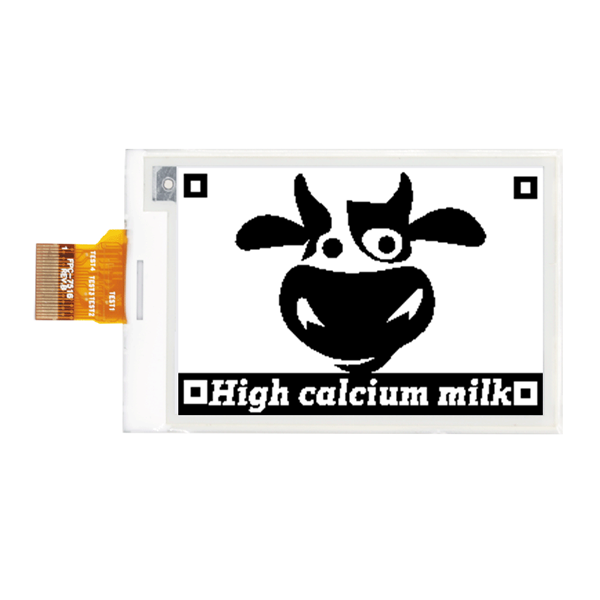

2.7" E-Paper Display– Fast Refresh E-Ink Screen, 264x176
ePaper Display's Basic function
Refresh Method: Full refresh for 3s、Fast refresh for 1.5s、Partial refresh for 0.3s (tested at 25°C ambient temperature).
Display direction: Horizontal or vertical
ePaper Display's Basic parameters
Product size: 2.7 inch
Resolution: 264x176
PPI: 117.51
Color: Black and White
Driver IC: SSD1680
Interface: SPI
Working voltage: 3.3V
Working temperature: 0-50 ℃
Optional customized: Touch screen | Front light | Front light + Touch screen | NFC driver board
ePaper Display's Main features
Display feature: Bistable display (maintains the last screen after power outage)
Display mode: Pure reflection
Angle of view: Wide angle of view, greater than 170 degrees
Surface treatment: Hard coating anti glare treatment
Environmentally friendly and low-carbon: No refresh, no power consumption
Eye protection: No blue light, no radiation
